ProntoTEST-FIXTURE

Download Software
(The trial software is free. Start using the fully licensed software for as little as $500.
For over 35 years, Unisoft has had the best prices.)

10 minutes to program your PCB assembly ( PCBA ) Automatic Test Equipment (ATE) or boundary-scan system

Automatic Test Equipment (ATE) Programming Software

Click here for software download & more information!

And with our software, you'll be ahead of the game. We know that programming your Test equipment can be a tedious and time-consuming task, leaving little room for other things. Our ProntoTEST-FIXTURE software, developed over the last 35 years, streamlines the test programming process, saving you valuable time.

Used by electronics manufacturers ProntoTEST-FIXTURE quickly generates accurate circuit description files for In-Circuit and MDA Automatic Test Equipment (ATE) and designs "Bed of Nails" test fixtures and programs Flying Probe ATE and boundary-scan systems support. ProntoTEST-FIXTURE also includes the basic features of ProntoVIEW-MARKUP. The Unisoft ProntoTEST-FIXTURE software translates CAD or Gerber and Bill of Materials (BOM) files into real reference designators, X/Y component pins, nets, trace runs, rotation, part numbers, etc. This data is then used by Test Engineers to program their Automatic Test Equipment (ATE) machines and boundary-scan systems. Instantly finds non-probable nets, optimizes probe placement and size, creates fixture fabrication files, test documentation, etc. Receive reports containing device and package type counts for quotation and cost estimations and reports such as nets that cannot be accessed with a test probe, total test probes needed by size, etc. ProntoTEST-FIXTURE programs popular newer and older Test equipment. Most Test machines are supported such as Keysight/Agilent/Hewlett Packard, Teradyne, GenRad, Takaya flying probe, Spea, Seica flying probe, Huntron, Jet Tester, Acculogic, Sprint Flying Probe, Javelin Flying Probe, etc. Supports boundary-scan systems such as Corelis, Flynn Systems, JTAG Technologies and XJTAG. Other Test equipmemt models can be programmed with standard outputs the Unisoft software creates. Also some ATE Test machines and boundary-scan systems need only standard CAD file formats to program them and the Unisoft software as options available to input one type of CAD file format and then export a standard CAD file format such as GENCAD, IPCD356, IPC-2581, MENTOR Neutral, PADS, Fabmaster, .XML, etc. that can then be used to program the ATE Test equipment and boundary-scan systems. Trial Software (The trial software is free. Start using the fully licensed software for as little as $500. For over 35 years, Unisoft has had the best prices.).

ProntoTEST-FIXTURE also includes, at no additional charge, the basic features of ProntoVIEW-MARKUP and is used by PCB assembly ( PCBA ) electronic manufacturers with features such as detailed viewing of PC board assemblies and aids troubleshooting technicians and debug, the creation of documents, etc. required throughout the PCB assembly ( PCBA ) test/assembly process. The software increases efficiency, communications and reduces errors across the production floor. With over 100 features ProntoVIEW-MARKUP aids every department every day on the shop floor of PCB assembly ( PCBA ) manufacturers where it is used by management, assembly, inspection, design, Test, troubleshooting technicians and other personnel. The software creates assembly instructions with unique colors for each part number and step in the assembly process and generates matching kitting labels. Locate any component, pin or part number, finds shorts between traces, netlist, paperless hyperlinked schematic linked to the asssembly, add annotation notes and graphics. The software provides fast PC Board first article inspection and general inspection. Create reports containing device and package type counts with quotation and cost estimations, etc.. With a current license distribute the Unisoft included PC Board viewer software to your production floor, vendors, customers, etc. to aid assembly, 1st article inspection, general inspection, repair/rework, technician debug, for better communications, etc. If needed ProntoVIEW-MARKUP can be controlled remotely from your application or equipment via the supplied external API programming interface.

You may already have Test software that you use to program your ATE Test equipment and boundary-scan systems but you need a way to convert newer or non-supported cad file formats to this software. Unisoft can import virtually any CAD or Gerber format and export a standard file for import to your existing ATE Test and boundary-scan software. Output formats include GENCAD, IPCD356, IPC-2581, MENTOR Neutral, PADS, Fabmaster, .XML, etc. For example Unisoft can import virtually any CAD or Gerber file format and export to Teradyne/Genrad D2B Alchemist or Fabmaster Test Expert software.

If you only have Gerber files for your Test project because the native CAD files are not available the Unisoft software can help you to program your ATE Test equipment and boundary-scan systems. The Unisoft software takes your gerber files and BOM and creates the exact Reference Designators, Net List, X/Y, Part Number, Values and Tolerance data you need to program your project. This feature of ProntoTEST-FIXTURE can automatically create the Netlist from your raw gerber files in addition to the real reference designators, theta rotation, part numbers, X/Y component pin geometries, values, tolerances, etc. The netlist is a mandatory item for most Test Departments and repair technicians. ProntoTEST-FIXTURE creates the netlist by automatically tracking and connecting the copper traces from the gerber files to the correct components, pins and vias for each net. Of course the Unisoft software also imports virtually all standard native CAD file types too!

Sample test equipment and test fixture and boundary-scan setup files created by Unisoft ProntoTEST-FIXTURE (all popular machine formats supported):

AGILENT/HEWLETT PACKARD HP307X OUTPUT — BOARD & BOARD X/Y FILES:

*Dig U1 386EX P/N 395380-01-4;
*Cap C1 10u 20 20 f P/N 3H100M-CR-1;
*Ind L1 33u 10 10 10 f P/N 3XCTX3-32-P;
*Res R12 10k 1 1 f P/N 3XBT10-02-F;
*Devices
BATT1 1.UN002137 2.GND 5.UN002137 6.GND;
C1 1.+5VB 2.GND;
*XY
C6 1 X 2.200 Y 2.750
C6 2 X 2.200 Y 2.850


Ref Des Pin_Name PadLocX PadLocY Side PadSizeX PadSizeY NetName
JP1 6 1.095 0.520 Bottom 0.000 0.000 +24V
U59 3 8.758 4.439 Top 0.000 0.000 MUXOUT
VIA1440 1 8.683 4.438 Both 0.000 0.000 MUXOUT
U26 44 1.900 3.958 Top 0.000 0.000 MOSI
U36 1 0.510 2.168 Top 0.000 0.000 MOSI
VIA659 1 1.812 3.799 Both 0.000 0.000 MOSI
VIA660 1 0.517 2.780 Both 0.000 0.000 MOSI
CR1 2 3.318 2.297 Top 0.000 0.000 NC
U13 10 6.303 3.985 Top 0.000 0.000 NC

GENRAD OUTPUT:

%CIRCUIT;
GND EXT ,N1;
VCC EXT ,N35;
C1 C 1=N1, 2=N1;
C10 C 1=N9, 2=N1;
D1 CR A=N163, C=N138;C1 C 1=N1, 2=N1;
%VALUE:12345;
C1 = .022U, +20%, -20%, MSG='S13-217 PL#1 ';
CR3 = 800M, +5%, -5%, MSG='S13S-45 PL#77 ';
%ADAPTER:2282:TEMP;
H1=N1; /* 1 U2-3 H 84/ 114 SMD */
H2=N2; /* 2 U5-14 H ** All 3 Pins SMD */

TERADYNE OUTPUT:

INPUTLIST, C:PCB.IPL
SH,0,1,16-1999
R,R1,"RES,P1,150k,5%",150k,5%,0,0C,C8,"CAP,C8,.1UF,20%",.1UF,20%,20%,22,0
C,C9,"CAP,C9,47UF,20%",47UF,20%,20%,22,0
D,CR3,"",0,173
D,D1,"DIODE",176,151
IC,U14,"P/N 74HCT74",74HCT74,95,96,97,98,85,84,83,82,81,92,93,99,100,101,102,103

TAKAYA FLYING PROBE:

@M CA9 format (Bottom Side)
@CE
@H +421640 -547370
IP2P1 P-Auto P3_3V-P1_8V_ * R N61 N164 @K OP
IP2P2 P-Auto P3_3V-P1_6V_ * R N61 N201 @K OP
IP2P3 P-Auto P3_3V-P2_5V * R N61 N87 @K OP
IP2P4 P-Auto P3_3V-P5_0V * R N61 N88 @K OP
IP2P5 P-Auto P1_8V_-P1_6V_ * R N164 N201 @K OP
C50 10UF 391781-01-4 * C N30 N2 @T 20 20
C51 10UF 391781-01-4 * C N1 N2 @T 20 20
CR30 * 385848-05-6 * D N22 N8 @T 7 6
CR20 * 385848-05-6 * D N24 N8 @T 7 6

TERADYNE JAVELIN FLYING PROBE:

.ESN FILE:
P,1,00,IC,1,U1,N7,,,,,,,0258.832,0099.847,90,T,T,TC554001AFT
P,1,00,IC,2,U2,M7,,,,,,,0216.668,0099.847,90,T,T,TC554001AFT
P,1,00,IC,3,U3,M7,,,,,,,0237.750,0099.847,90,T,T,TC554001AFT
L,1,1,57,0252.882,0109.372,1
L,1,2,55,0252.882,0108.102,2
L,1,3,53,0252.882,0106.832,3

.ASC FILE:
:NET
#1|S|WDT_DIS2|185
U12.5
U13.33

TEST FIXTURE FABRICATION FILE:

\* Probe Spacing: 100 mils *\
P2 1 X 3.300 Y 0.300
P2 2 X 3.200 Y 0.200
P2 3 X 3.100 Y 0.300 238 - 2402
P2 4 X 3.000 Y 0.300 312 - 0502
CR2 1 X 5.275 Y 5.950
CR2 2 X 5.375 Y 5.950 378 - 1805
\* Probe Spacing: 75 mils *\
GP1 1 X 4.940 Y 5.610
GP4 1 X 2.475 Y 5.250
J1 1 X 0.700 Y 5.425 148 - 0104
J1 2 X 0.700 Y 5.504 123 - 2506
J1 3 X 0.779 Y 5.425 147 - 0005
J1 4 X 0.779 Y 5.504 122 - 0004

GENERIC OUTPUT - Has every component pin, via, etc. Can be used to setup various test equipment:

54 - VCC C1.1 X -4.800 Y 0.320 Top Smd
149 - GND C1.2 X -4.800 Y 0.180 Top   Smd
54 - VCC C10.1 X -5.125 Y 0.720 Bottom Smd
149 - GND C10.2 X -5.125 Y 0.580 Bottom Smd

Unisoft .XML OUTPUT:

<xml version="1.0">
<unisoft version="1.0" units="mils">
<board name="C:\PROGRAM FILES\UNISOFT\SAMPLE.CAD" width="6910" height="2575">
</board>
<layers>
<layer name="TOP" top="true" bottom="false" sequence="1"/>
<layer name="4" top="false" bottom="false" sequence="2"/>
<layer name="5" top="false" bottom="false" sequence="3"/>
<layer name="BOTTOM" top="false" bottom="true" sequence="4"/>
</layers>
<nets>
<net name="BUFCLK"/>
<net name="IOMCLK"/>
<net name="IDI-16"/>
</component>
<component name="R36" x="-3800" y="550" devicetype="SMD" partno="391729-02-0" layer="BOTTOM">
<outline>
<line x1="-3831" y1="651" x2="-3769" y2="651"/>
<line x1="-3769" y1="651" x2="-3769" y2="449"/>
<line x1="-3769" y1="449" x2="-3831" y2="449"/>
<line x1="-3831" y1="449" x2="-3831" y2="651"/>
</outline>
<pins>
<pin name="1" x="-2250" y="500" component="CR24" net="N_867" pin1="true"/>
<pin name="2" x="-1950" y="400" component="CR24" net="CGND"/>
<pin name="1" x="-1625" y="1425" component="CR13" net="N_829" pin1="true"/>
<pin name="2" x="-1325" y="1325" component="CR13" net="N_871"/>
<traces>
<trace x1="-4575" y1="2000" x2="-4600" y2="1975" net="-RDLTCH" layer="BOTTOM"/>
<trace x1="-4600" y1="1975" x2="-4600" y2="1950" net="-RDLTCH" layer="BOTTOM"/>
<trace x1="-5475" y1="1025" x2="-5475" y2="1100" net="-IOMRD" layer="BOTTOM"/>
<trace x1="-5725" y1="1575" x2="-5725" y2="1625" net="BUFCLK" layer="BOTTOM"/>

Some features of ProntoTEST-FIXTURE:

• 10 minutes to program your PCB assembly ( PCBA ) Automatic Test Equipment (ATE) and boundary-scan system
  • Step 1 - Choose the XY data you wish to use such as either the full CAD file or Gerber only file and import that data into the Unisoft software.
  • Step 2 - Import the BOM (If needed at this point the boundary-scan system programming file can be exported).
  • Step 3 - Set the REFERENCE 1 and 2 points.
  • Step 4 - Set your 0,0 XY origin. This is an optional step.
  • Step 5 - If needed enter part numbers into library.
  • Step 6 - Generate Test Fixture (ATE) programming files.
• Saves ATE Test machine run time by off-line creating and verifying of Test programs
• Automatically create Test Equipment programming files from all types of CAD, Gerber, XY rotation, BOM, etc. data file formats
• Options are available to export a standard CAD file format such as GENCAD, IPCD356, IPC-2581, etc. that can then be used to program the Test equipment.
• Export a standardized net list and bill of material (BOM). Use to create ATE circuit description files to program a variety of Automatic Test Equipment (ATE).
• Avoid expensive & complex fixturing.
• Reduce fixture and program turnaround time.
• Optimize test probe size and positions.
• Import virtually any CAD file.
• Import gerber only files.
• Performs testability analysis using only the CAD file. Before the first board is built detect and correct problems such as untestable nets do to no test probe access.
• Net by Net report of probe failures.
• User selectable probe size ranges.
• User selectable ranking of probe placement criteria.
• Automatic dispersion and staggering of test probe locations.
• Keepout areas are automatically calculated and user adjustable.
• Auto numbering of vias creates a unique name in netlist for each via.
• For older ATE equipment split alphanumeric pins on Import/Export and shorten long netnames.
• Import nets, renumber nets, kill nets and auto assign net numbers to "no connect" nets.
• Change the component properties of any part number (ex: Non-SMT to SMT).
• Set origins and measurement tool.
• Reports the total number of test probes used, their size, etc. This aids in quoting a test fixture quickly & accurately.
• Import test probe numbers to appear on the display. Can be given to the customer or CAD dept. to prevent moving of components or test points with currently assigned test probes which may violate the current "bed of nails" test fixture and cause a redesign of the fixture.
• BOM crosscheck and clean up (DNI check, duplicate component part numbers, etc.)
• BOM comparision
• 8 options to create and assign fiducial lineup reference points
• Rotation reset option to IPC-7351B Level A zero degrees component rotation standard, rotation modification by part number and other rotation modification options
• Via either library import or manually user can add part libraries, package shapes, assembly information notes, etc.
• Include/exclude components by part number option on machine export
• Multiple machine output format options

The ProntoTEST-FIXTURE software also includes the basic features of ProntoVIEW-MARKUP:

Over 100 features to aid every department every day on the shop floor of PCB assembly ( PCBA ) manufacturers. Used by management, assembly, inspection, design, Test, troubleshooting technicians, etc.

• Imports all types of CAD, Gerber, XY rotation, BOM, etc. data formats
• API - Remote application programming interface (API)
• Assembly - Assembly and Inspection Documents
• Assembly - Create assembly process Kitting Labels
• Assembly - Create assembly process documents - single and multiple pages per step with unique color per step
• Assembly - Insert PCB assembly ( PCBA ) gerber, photos, etc. to enhance background display
• Assembly - Overlay gerber, graphics, etc. for PCB assembly ( PCBA ) details
• BOM - Cross-Checking the BOM
• BOM - Export standardized BOM files to Part Sourcing, MRP and ERP software
• BOM - Edit BOM information
• BOM - Importing any format of BOM in text, Excel and PDF files
• BOM - BOM files comparison
• Inspection - Component pins displayed turned on or off by part number
• Inspection - Cross-Checking the BOM
• Inspection - Crosschecking PCB assembly ( PCBA ) component footprint and BOM footprint
• Inspection - First Article Inspection (blink and check off by part number)
• Inspection - Identify, color and blink Do Not Install (DNI) components
• Inspection - Polarized component inspection, assembly, etc. via pins turned on/off by p/n, etc.
• Library - Library operation notes from part libraries, package, assembly information, etc.
• Menus - Customize the Menus and Splash Page
• Quote & Quality - Assembly Cost by Component Span Report for Quoting
• Quote & Quality - Assembly or Parts Cost by Part Number Report
• Quote & Quality - Cycle Times - calculate component assembly cycle times (Takt time)
• Quote & Quality - Electronic Components Search (Digikey, FindChips, Octopart, etc.)
• Quote & Quality - Solder Joint Count - Defect Per Million Operations (DPMO) Report
• Technician Troubleshooting - Find components, aid inspection, debug, rework, etc.
• Technician Troubleshooting - Hyper-linked Schematic & Assembly
• Technician Troubleshooting - Netlist, traces, schematic, pins, etc.
• Technician Troubleshooting - Find short between 2 trace runs
• Test - Test probe mapping, DFT, etc.
• Test - Netlists from only gerber data
• Viewer - Unisoft PCB assembly ( PCBA ) viewer distribution
• Quick Return On Investment (ROI). All processes faster and more accurate

Other features in the Unisoft software suite:

• AOI machine programming wide support. For example: YESTech, Mirtec, Orbotech, Agilent, Omron, AOI Systems, CyberOptics, MVP, Koh Young, ViTechnology, etc.
• Assembly machine programming wide support. For example: Assembleon, Mycronic/Mydata, Juki, Siemens, Universal, Fuji, Samsung, Panasonic, etc.
• CAD translation - Export Output formats include GENCAD, Fabmaster, IPC-D-356, IPC-2581, Mentor Graphics, PADS .ASC, .XML, Unisoft .FBA, etc.
• Selective Soldering machine programming
• Test equipment programming - ATE In-circuit Bed Of Nail, MDA, Flying Probe testers, boundary scan, etc.
• CELLS Workflow MES - Manufacturing Execution System (MES) product and job tracking software module

Unisoft ProntoTEST-FIXTURE Software Overview Diagram

Test Documentation Process Sheets

The Unisoft software allows you to quickly create matching test documentation process sheets for each step in the test process. Part numbers can be automatically assigned to the test steps you wish. (For example: Step 1 "Connector - Place Test Probes here for trace opens testing!", Step 2 "Switch - Make sure all switches are in OPEN position prior to In-Circuit ATE testing!", etc.) The part numbers are then automatically uniquely colored. If needed, overlay annotation notes can be added to each step. Next for each step matching test assembly drawings and lists are created. These drawings can either be printed or save to a file (PDF Adobe, etc.) or displayed on the screen.

The trial software has HELP for most menu items by hovering over the menu item for a second then click any of the videos, manual or website links to learn about the software.

ProntoVIEW-MARKUP

The basic features of ProntoVIEW-MARKUP are included at no additional charge and adds features such as detailed viewing of PC board assemblies and the creation of documents, etc. required throughout the PCB assembly ( PCBA ) process. The software increases efficiency, communications and reduces errors across the production floor. With over 100 features aids every department every day on the shop floor of PCB assembly ( PCBA ) manufacturers where it is used by management, assembly, inspection, design, Test, troubleshooting technicians and other personnel.

The information and figures that follow outline a few of the features of ProntoVIEW-MARKUP.

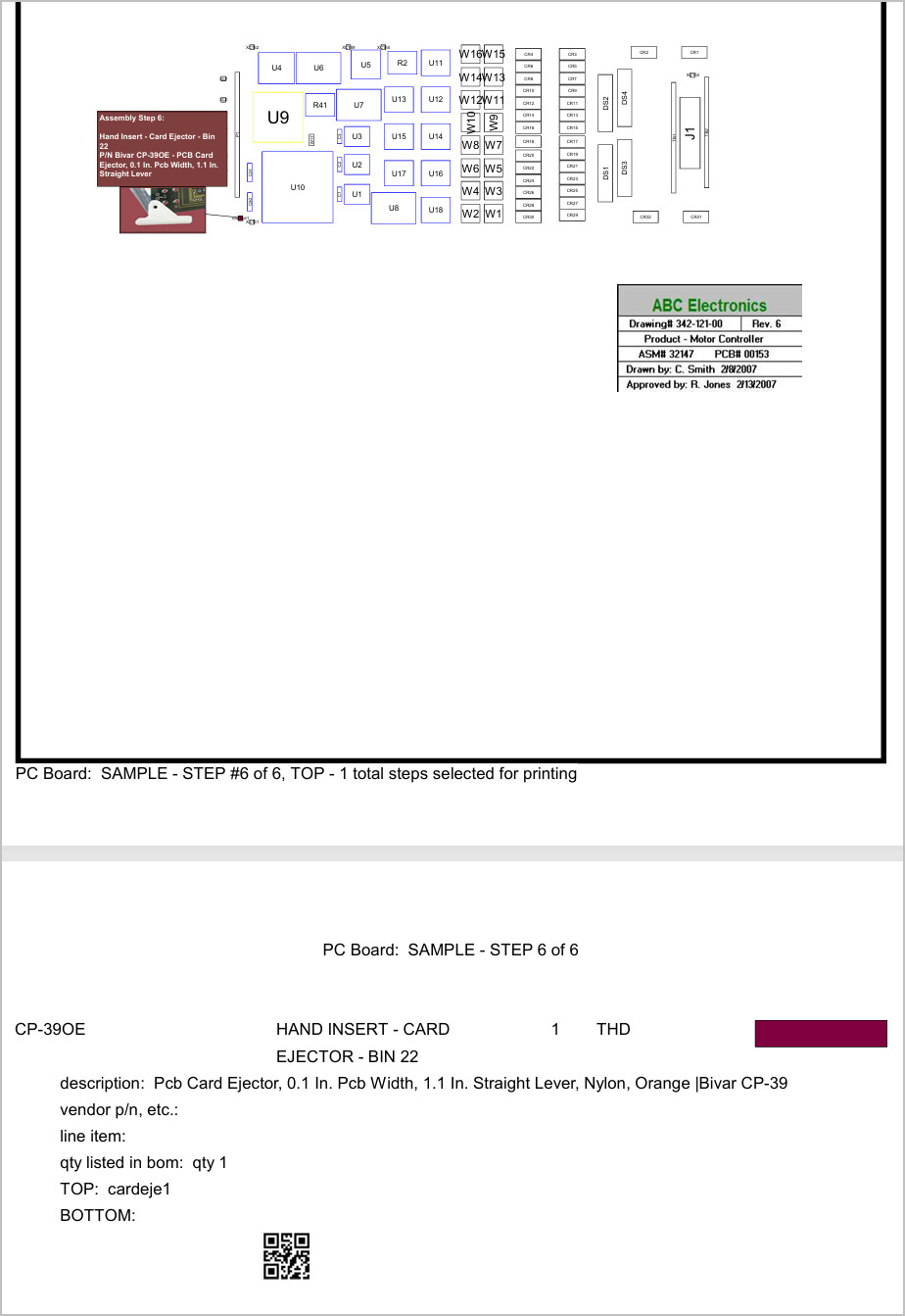

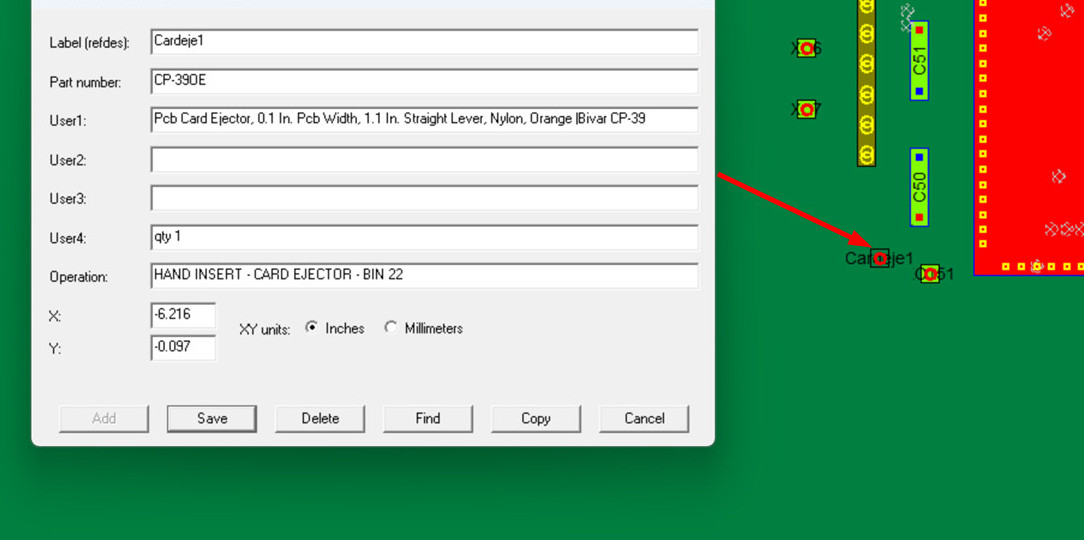

Assembly Process Documents

The Unisoft software allows you to quickly create matching assembly lists and assembly drawing sheets for each step in the assembly process. Part numbers are automatically assigned to the assembly step you wish (for example: Step 1 for Hand Inserts, Step 2 Chip Shooter components, etc). The part numbers are then automatically uniquely colored. If needed, overlay annotation notes can be added to each step. Next for each step matching assembly lists and assembly drawings are created. These drawings can either be printed or save to a file (PDF Adobe, etc.) or displayed on the screen.

Download a sample of process and assembly sheet documentation created by this software.

Kitting Labels

The Unisoft software allows you to quickly create Kitting Labels with barcodes for fast and accurate electronic component kitting. Quickly select the component part numbers for which you wish kitting labels created. Each label contains the part number, unique part number color, step number, p/n description, reference designator, etc. Fast and easy electronic kitting labels for kitting work orders.

Barcodes of various types can be printed on the kitting labels and shown on the display for quick kitting, fast assembly machine feeder loading, verification, inspection, etc.: 2d-qr code, 2d-data matrix, etc.

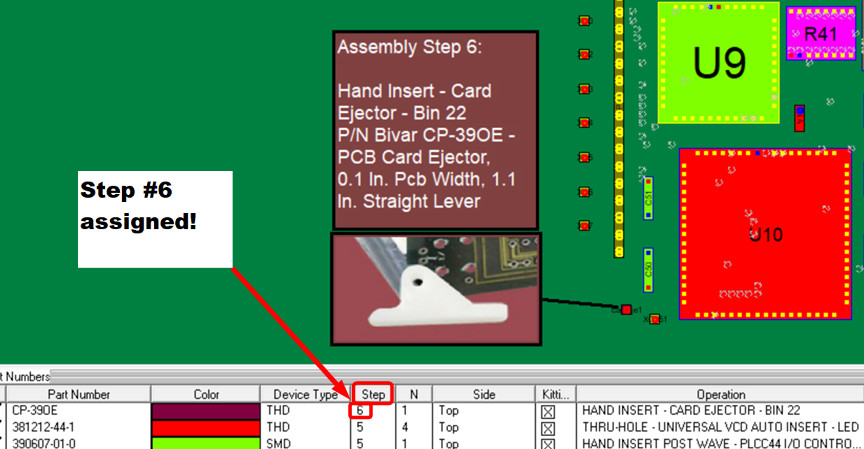

Paperless Assembly Instructions - use display only for slide line PCB assembly ( PCBA ) , etc.

Paper or Paperless assembly instructions are available using the Unisoft software. If paperless assembly instructions are desired then many options are available. For example two options might be that the below 3 operations for Mary, Jane and Joe can be shown as the same display, as pictured above, on each of their 3 monitors. The other option may be that the 3 color operations above can be separated into 3 separate .F2B database files and then each .F2B displays only their unique operation on each of their 3 monitors.

Further the operators can select one of their several part numbers to be install from below and only those components with the selected part number will blink on the display.

If paper assembly documents are desired from the paperless display simply click the PRINT ASSEMBLY DOCUMENTS button and the hard copy created can be ordered by step, color, operation, etc.

Quoting - PCB assembly ( PCBA ) Cost Estimate Report

Import your PC Board into the Unisoft manufacturing software and you instantly receive a report containing component counts for top and bottom of the PC Board broken down by SMT, Fine pitch, BGA's, Thru-hole, etc. with the cost for each group. You can create as many PCB assembly ( PCBA ) Cost templates as you wish, for example one each for either a Low, Medium or High volume build. This is a great quoting time saver for Contract and OEM manufacturers.

Example of a few lines of a report follows:

PC Board:   123-456
Date:       1-22-2013

    Base 1st Unit Assembly Build Rate (Includes P/N Setup Rate) = 219.18

    Each Unit Assembly Build Rate (Excludes P/N Setup Rate)     = 74.18

    Total Part Number Setup Rate                                = 145.00
________

SMT 2 pins greater than 0402 package type:  Greater than .040 inch distance between pin 1 and 2.
    Top      -  4 = total device count, 8 = total pin count
    Bottom   -  78 = total device count, 156 = total pin count
    Part #'s -  8 = total part numbers
    Base Rate:  49.84 = (0.12 * device count) + (5.00 * part #'s)

SMT 8 pins and greater and 30 mils or less pin spacing (fine pitch):
    Top      -  3 = total device count, 144 = total pin count
    Bottom   -  0 = total device count, 0 = total pin count
    Part #'s -  3 = total part numbers
    BGA's    -  0 = included in above count.
    Base Rate:  15.48 = (0.16 * device count) + (5.00 * part #'s) + (0.75 * BGA count)

Component Part Cost Report

Instantly create a component part cost report. This report is used by Contract and OEM manufacturers to quickly estimate component parts costs. The report contains the total component part cost for the PC Board and breakdown by part number.

Report type: Parts count with quotation and cost estimation.

PC Board: Controller
Date: 1-12-09
Total parts cost = $43.31
____

Solder Joint Count - Defect Per Million Operations (DPMO) Report

Instantly create a report of the total solder joint count for Defect Per Million Operations (DPMO). This report is used by Contract and OEM manufacturers for quality tracking. The report contains the total solder joints for the PC Board broken down by SMT and Thru Hole and part number.

Report type: Solder joint count with quotation and DPMO estimation.

PC Board: Controller
Date: 1-12-09

Total Solder Joints = 1104
Total SMT Solder Joints = 598
Total Thru Hole Solder Joints = 506
____

SMT 2 pins greater than 0402 package type: Greater than .040 inch distance between pin 1 and 2.
    Top - 4 = total device count, 8 = total pin count
    Bottom - 78 = total device count, 156 = total pin count
    Part #'s - 8 = total part numbers

SMT 8 pins and greater and greater than 30 mils pin spacing:
    Top - 17 = total device count, 290 = total pin count
    Bottom - 0 = total device count, 0 = total pin count
    Part #'s - 8 = total part numbers
    BGA's - 0 = included in above count.

Thru-hole 2 pins:
    Top - 34 = total device count, 68 = total pin count
    Bottom - 0 = total device count, 0 = total pin count
    Part #'s - 3 = total part numbers

Thru-hole 8 pins and greater:
    Top - 24 = total device count, 284 = total pin count
    Bottom - 0 = total device count, 0 = total pin count
    Part #'s - 6 = total part numbers

Electronic Components Search

The Electronic Components Search feature helps you find information such as cost, availability, part shape, electrical specifications, etc. Provides fast searching for electronic parts using your favorite parts search engine for example Octopart, FindChips, Alldatasheets, ECIA Authorized, etc.

Search for electronic parts using the Manufacturer or Vendor P/N for example ERJ-3EKF1002V. Also search by the electronic component number or name such as MAX232, LM393, resistor 10k, shift registers, inverter schmitt trigger, etc.

Export standardized BOM files to Part Sourcing, MRP and ERP software

All types of Bill of Material (BOM) formats can be imported into the Unisoft software and then exported to normalized standard BOM formats that can then be utilized by your other manufacturing software systems such as Part Sourcing, MRP, ERP, etc.

NETLIST window and blinking of all pins on the selected net

Easier drill down to component pins, trace runs and schematic. Display NETLISTS quickly using the "NET INFORMATION" window that displays the NET NAME of the selected component and pin and all the other pins on the net. The trace run of the selected net is highlighted and all pins on the net blink. If the schematic view is displayed then the net chosen is shown. The user can then select any one of the other pins on the net in the NET INFORMATION box. The result is the NET INFORMATION window will update to the new selected pin and the selected trace highlighted will update also. If the schematic view is displayed then that view will refresh too.

Included PC Board CAD Viewer & Gerber Viewer

The Unisoft software outputs a single board file of the PCB assembly ( PCBA ) that is compatible with the included PCB assembly ( PCBA ) viewer. Customers with a current license can distribute the PCB assembly ( PCBA ) viewer and the Unisoft PCB assembly ( PCBA ) board file to your production floor, other divisions, vendors, customers, etc. to aid assembly, first article inspection, general inspection, repair/rework, technician debug, for enhanced communications, etc.
